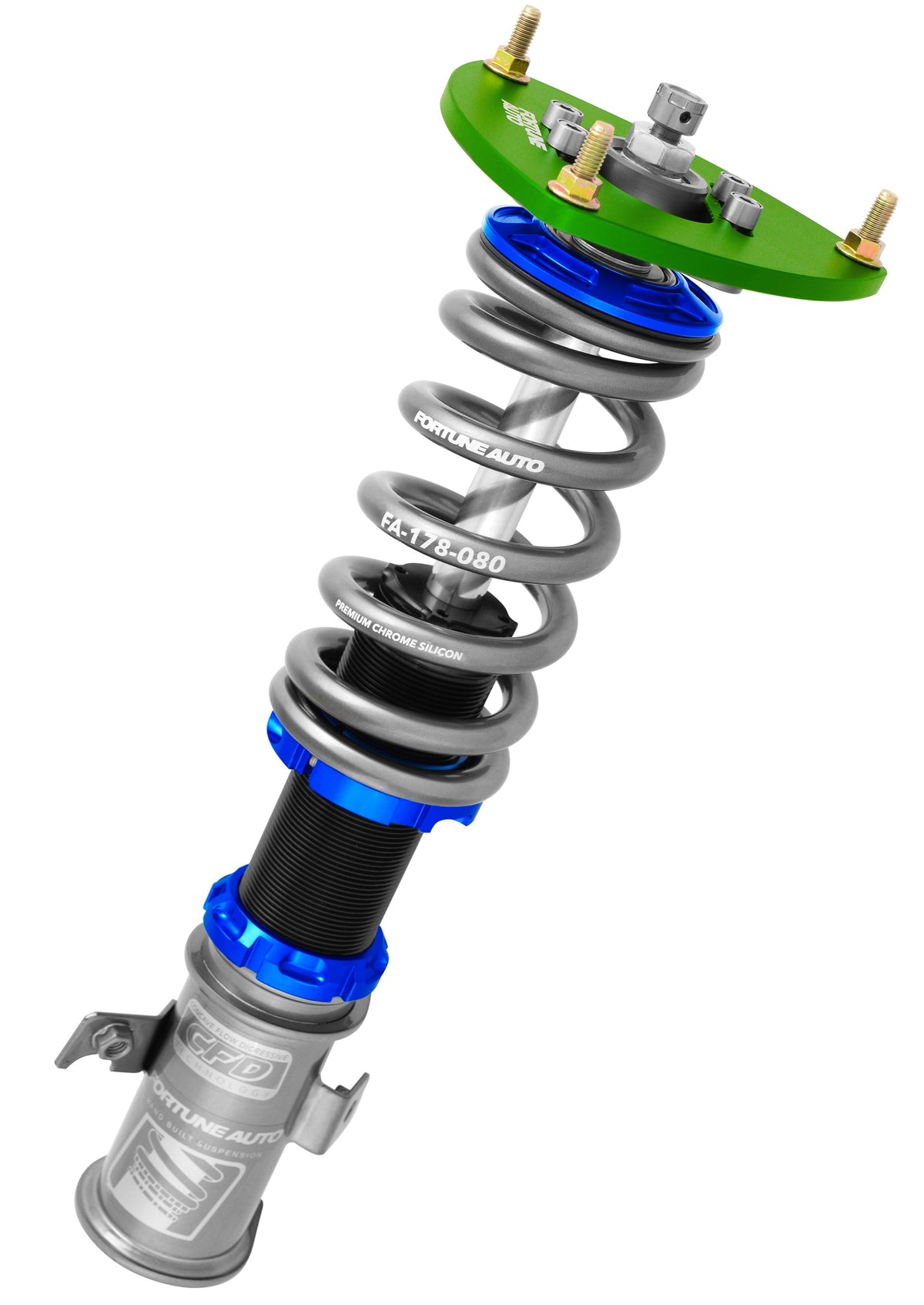

Fortune Auto Coilovers - 510 Series for 08+ Mitsubishi Lancer Evo X (CZ4A)

Part Number:FA510CFD-EVOX

Fortune Auto is proud to release the all new Generation 8 510 series dampers. The advanced suspension technology found in our new shock absorbers is derived from recent successes in World Challenge, One Lap of America, and Global Time Attack. All systems are built completely in-house in Richmond, Virginia. Fortune Auto insists on building bespoke suspension in order to offer the best quality control in the industry.

CUSTOM. MODULAR. REBUILDABLE.

Designed and assembled in the USA.

• Amsoil Synthetic Shock Oil
• Concave Flow Digressive Piston Technology
• Custom Built Assembly Certificate and Dyno Graph Supplied with Shocks all 4 Shocks
• 5 Year Limited Manufacturers Warranty
• 24-Step Simultaneous Rebound and Compression Adjustable Dampers
• Monotube Damper with High Pressure Nitrogen

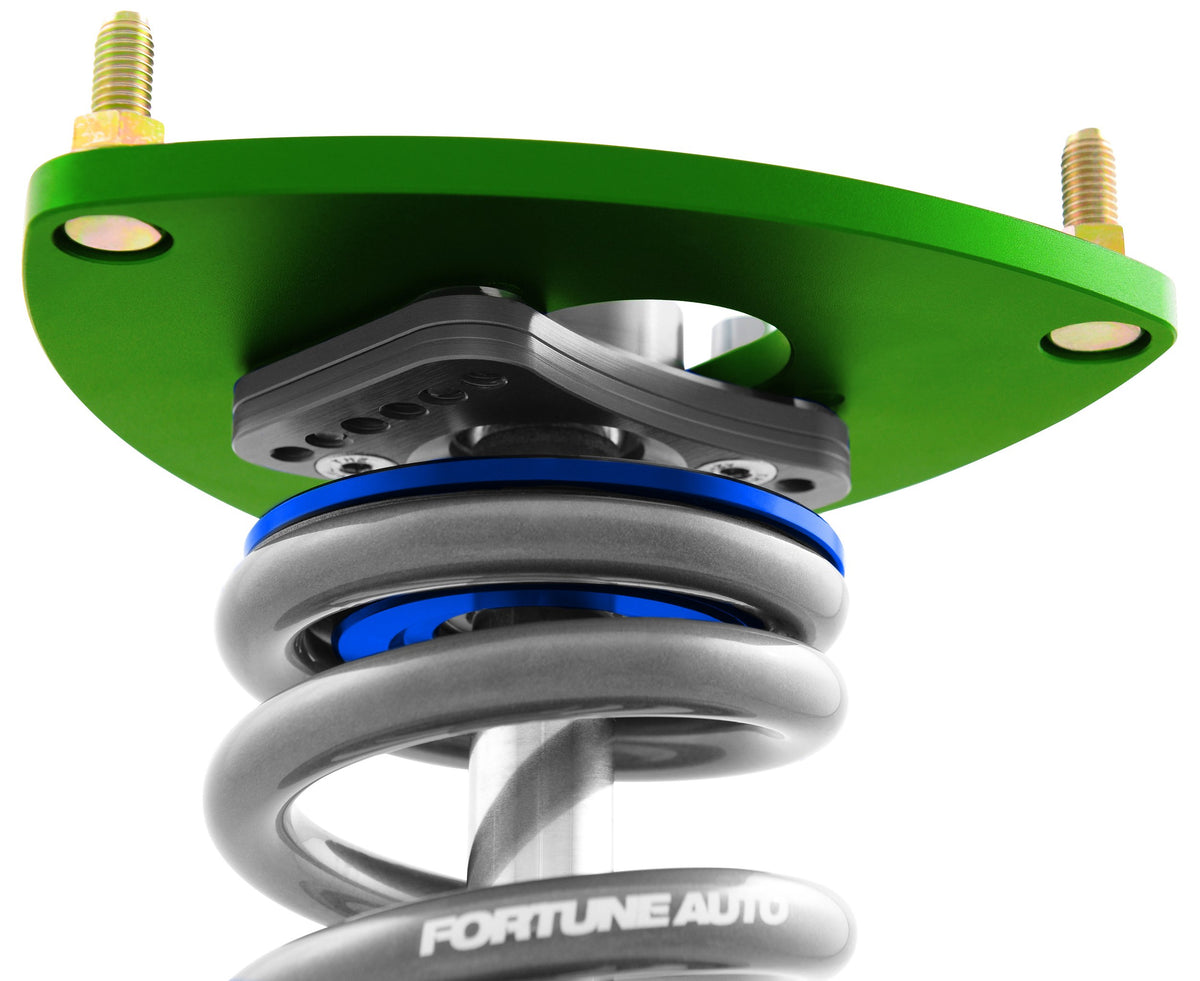

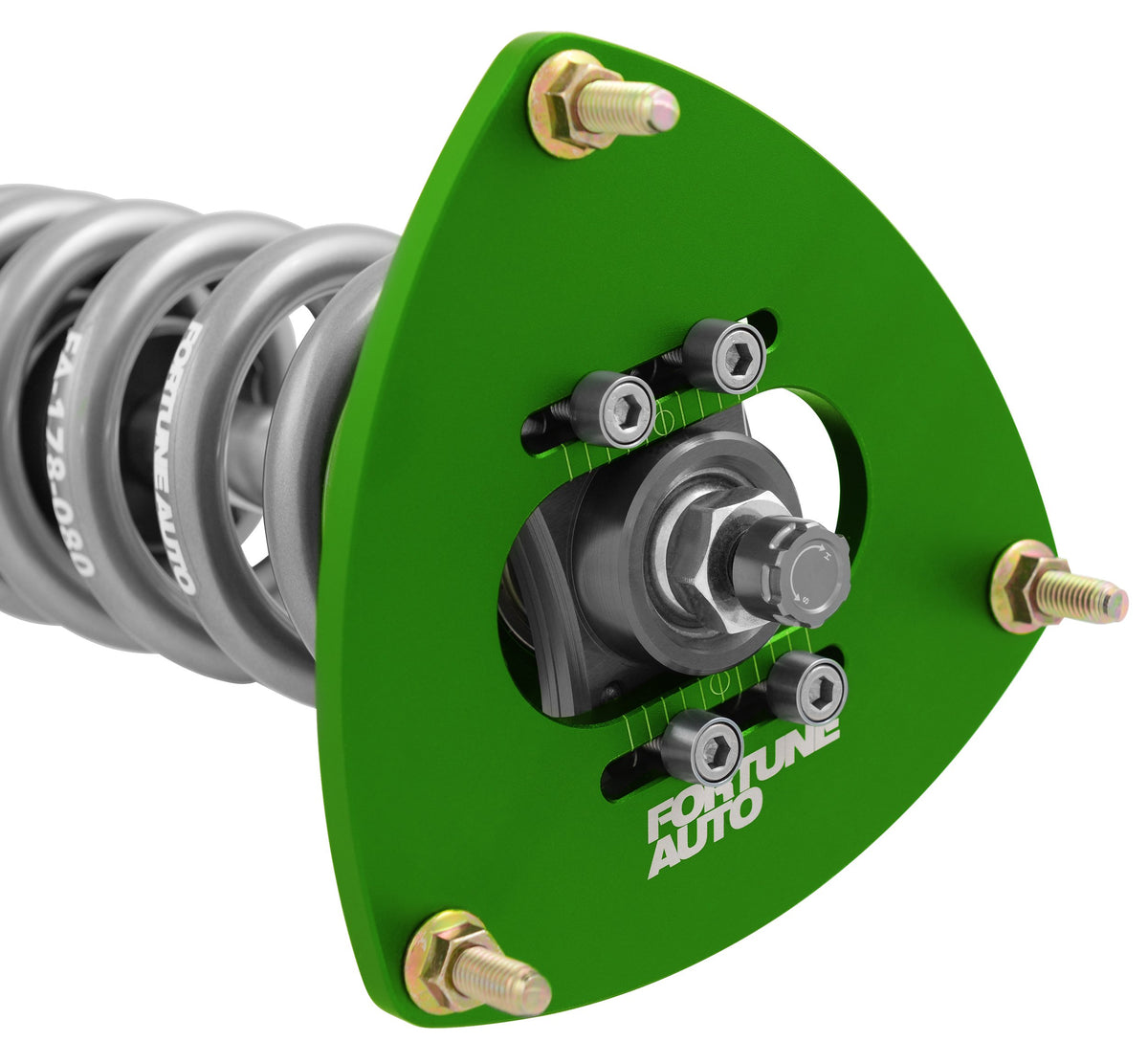

• T6 6061 Aluminum Mounts and Camber Plates
• Rebuildable and Revalveable at our Facility in Richmond, VA
• Modularity Upgradeable to 2-Way or 3-Way Canister

No Revalves Necessary

The ultra wide range of adjustment offered by the CFD piston allows for the convenience of tuning your suspension without having to revalve your dampers. A conventional shock absorber can withstand a 2kg spring rate difference before requiring a revalve, whereas the Concave Flow Digressive Technology has a broad range of 8kg spring rates. This is invaluable for tuning your suspension quickly at the track on race day.

Jekyll and Hyde

The Concave Flow Digressive Piston allows for a Jekyll and Hyde personality. Lower spring rates can be stiffened up by using the wide damping range as an artificial spring rate, while higher spring rates feel much smoother. The large adjustment range contributes to a comfortable ride on the street and unyielding performance on the track, all with the twist of a single adjustment knob.

510 Series Coilovers are custom hand-built to order with a lead time of 3-4 weeks before shipping.

Custom spring rates are available. You can request custom spring rates by entering the rates you want in the special instructions box after clicking add to cart. Spring rates up to 18K are available on standard Springs. Rates higher then 18K will require Swift springs or Hyperco springs upgrade.
