Product image for illustration purposes only. Actual product may vary.

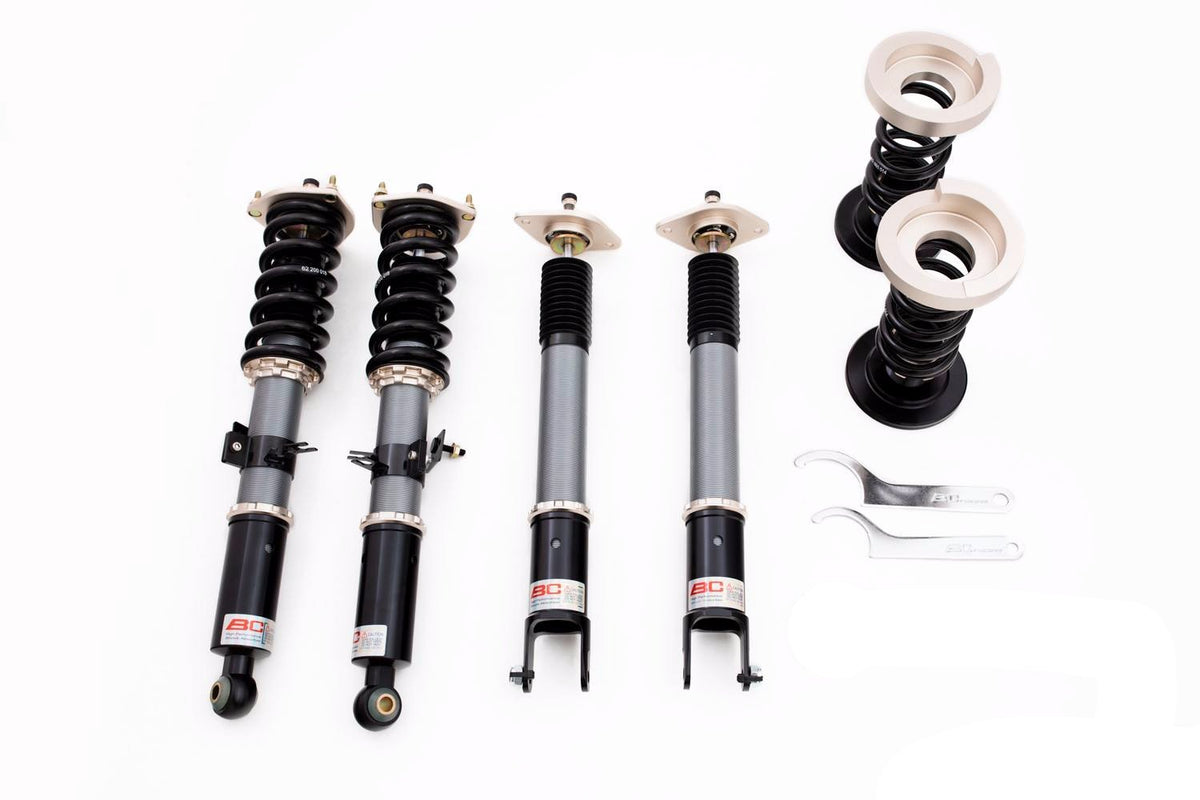

BC Racing Coilovers NEW DS Series is perfect for street driving and occasional road course duty. With easily accessible adjustment knobs for fine tuning your compression/rebound and separately adjustable ride height, having a performance coilover system couldn’t be any easier. You choose how low or high you want your vehicle, no preset ride height here, and patented concave lower locking ring keeps it locked in. Ride height is adjusted by raising and lowering the shock body; this maintains the same ideal damper stroke at ALL ride height levels for the best ride under any conditions. The pillowball mount option provides the most available feedback possible from your suspension and to sharpen your steering response. All this while providing a strong, attractive looking coilover system.
The DS series BC Racing Coilovers use a large 44mm diameter piston in a 53mm diameter damper body to maximize oil capacity. As the damper unit operates the oil contained within heats up. The viscosity of oil changes as it's temperature varies which can lead to changes in the damping characteristics of the unit.
BC Racing Coilovers use a very high quality oil with their coilovers but go that extra mile to maximise performance and build their BR range with a large 53mm diameter damper body. This increases the capacity of the unit which increases the volume of oil which in turn reduces the peak temperature and significantly improves damper performance.
Part Number:E-30-DS
Designed to Maximize Driver Feel

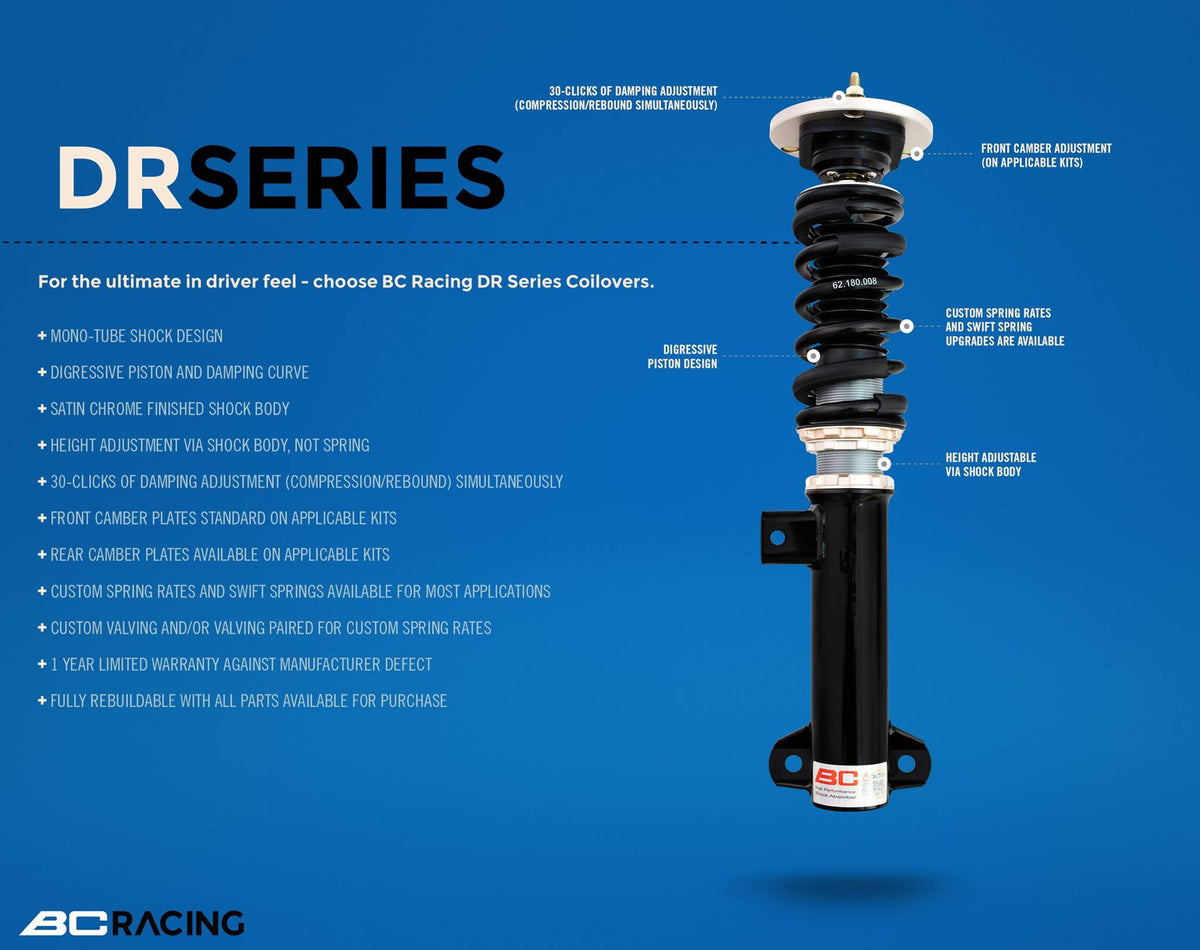

BC Racing Coilovers new proprietary digressive piston design offers increased dampening force at low piston velocities while maintaining a linear damper feel at higher piston velocities. One of the greatest advantages of increased low-speed damping force relates to what the driver feels, e.g roll, pitch, dive, and quick weight transitions on technical road courses. This is the key difference between the BC Racing BR series and DS series, but makes the biggest difference where it counts!
Note: DS Coilovers are built to order with a 3-4 week build time.
Custom valving and springs rates are available by request. Contact via phone for a full quote.
Key Fetures include:
Spring rates for the front are 6kg/mm and 8kg/mm for the rear.
These BC Racing BR Type Coilovers are perfect for either street driving, road course or autocross duty. With easily accessible adjustment knobs for fine-tuning your compression and rebound, plus a separately adjustable ride height, having a performance coilover system could not be any easier.
You choose how low or high you want your Mustang to sit and BC Racing's patented concave lower locking ring keeps it locked in securely. BC Racing's systems offer optional pillowball mounts to provide the most response possible from your suspension, and to sharpen your steering response.
The front camber plates also allow you to get the perfect alignment setup without compromise.
Product Benefits
These BC Racing BR Type Coilovers are perfect for either street driving, road course or autocross duty. With easily accessible adjustment knobs for fine-tuning your compression and rebound, plus a separately adjustable ride height, having a performance coilover system could not be any easier.
You choose how low or high you want your Mustang to sit and BC Racing's patented concave lower locking ring keeps it locked in securely. BC Racing's systems offer optional pillowball mounts to provide the most response possible from your suspension, and to sharpen your steering response.
The front camber plates also allow you to get the perfect alignment setup without compromise.
Product Benefits
It all installed pretty easily but even after tightening the springs out of the box I still get noise when hitting bumps and turning which is disappointing considering the cost me $1400
