02-09 Mercedes E Class AMG Godspeed MAXX Coilovers

Brand: Godspeed

Part number: MMX3120

  Lease to own   Pay as low as   $/week

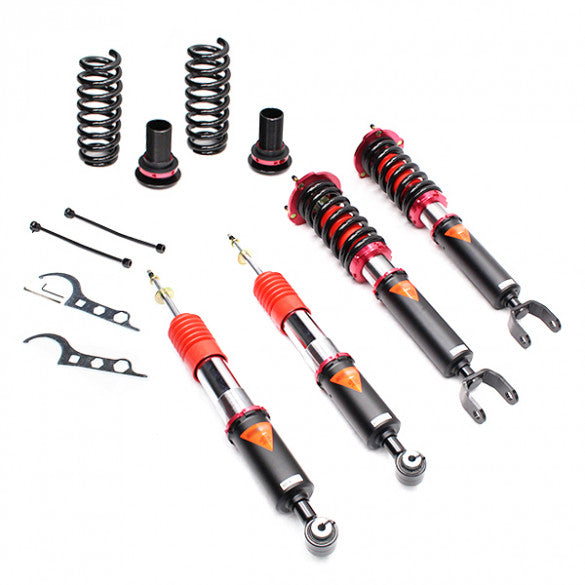

Godspeed MAXX Coilovers for the 02-09 Mercedes E Class AMG W211

Part Number:MMX3120-B

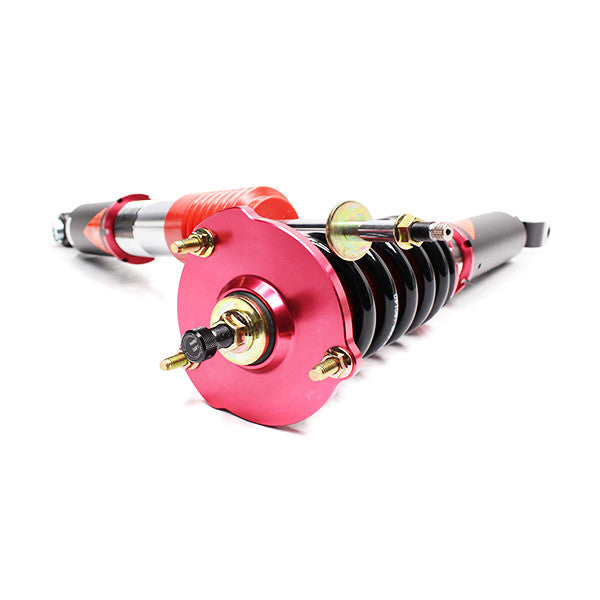

Godspeed Project's MAXX is their premier fully adjustable coilover kit. These coilovers are designed to be a street friendly race built coilover at an affordable price. MAXX coilovers feature a monotube damper that is made out of a oversized 53mm cartridge with a 44mm internal piston providing maximum damper response. The cold wound springs are made from high strength SAE9252 steel to optimize the balance between performance and comfort. Using high quality shock oil made in Italy, Godspeed coilovers can guarantee exceptional damper performance at any temperature on and off the track. The top of the shock is attached to the car using a high quality top hat that features a high performance bearing pillow ball mount (when applicable). The bottom shock brackets are made out of a T7075 forged aluminum or high quality steel brackets for lighter weight without sacrificing durability which also includes brake line brackets (when applicable). The MAXX coilovers offer 40 level of damper adjustability which allow you to fine tune ride quality to your needs.

IF you have factory airmatic suspension or AMG model, please read the following:

For proper install you will need to use rear lower control arms from a Mercedes E350 W211 chassis.

*This coilover suspension kit will NOT fit the 4MATIC/AWD model of this vehicle

Features:

  • 40 precise levels of damper adjustment
  • Monotube shock design
  • Anodized shock body
  • Lightweight aluminum shock components / carbon steel brackets
  • 52mm carbon steel shock body with a 44mm internal piston
  • Independent ride height and spring preload adjustments
  • Italian IP F.A made shock oil with a high viscosity index
  • 1 Year Warranty from Date of Purchase
DAMPING LEVELS 40 Levels
HEIGHT ADJUSTMENT Yes
SPRING RATE(FRONT) 14 kg/mm (784 lbs/inch)
SPRING RATE(REAR) 9 kg/mm (504 lbs/inch)
SPRING LENGTH(FRONT) 180 mm
SPRING LENGTH(REAR) 245 mm
FRONT TOP MOUNT No

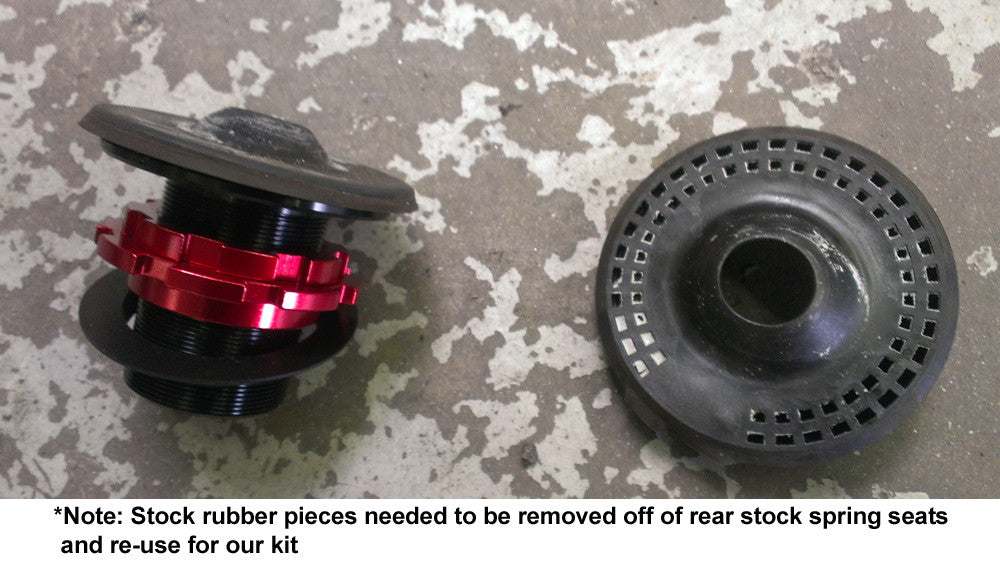

REAR TOP MOUNT No, Reuse Factory Top
SPRING INNER DIAMETER(FRONT) 62 mm (2.44 inch)
SPRING INNER DIAMETER(REAR) 62 mm (2.44 inch)
Spring Rates:
  • Front: 7.8K
  • Rear: 9K
  • Fitment: Fits 02-09 Mercedes E Class AMG
