00-05 Ford Excursion 4WD 5 Inch Lift Kit - Rough Country

Brand: Rough Country

Part number: 481.20

  Lease to own   Pay as low as   $/week

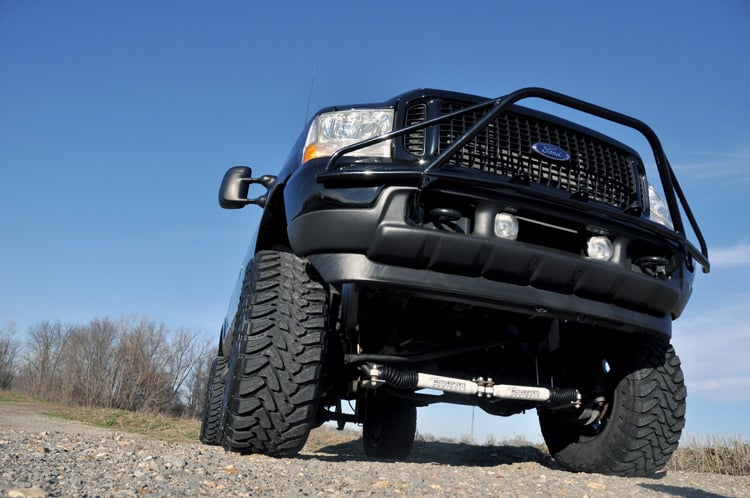

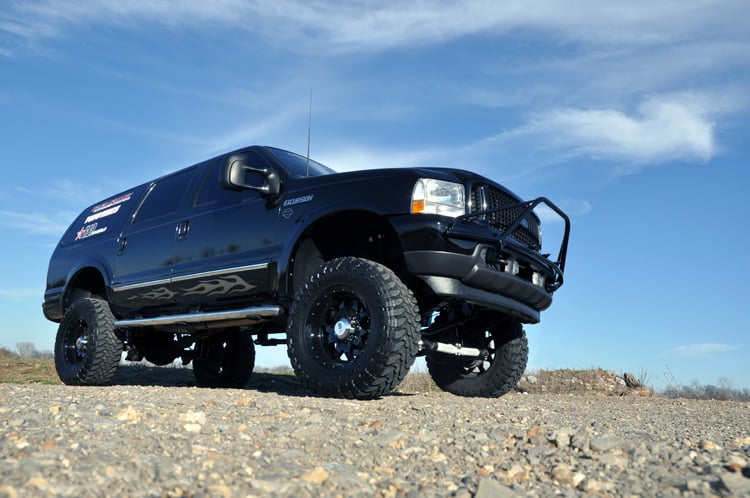

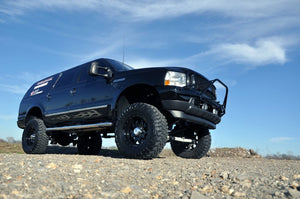

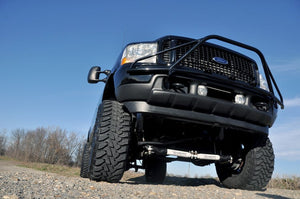

Rough Country 5 Inch Lift Kit for the 00-05 Ford Excursion 4WD

Superior Lift Solution.Take your Ford Excursion to the next level with Rough Country's 5-Inch Lift Kit. Give your SUV improved ride height and a more aggressive appearance without sacrificing ride quality or performance. Plus, with 5 inches of lift, you can accommodate larger tires up to 35 inches and boost your undercarriage protection. Take your SUV to new heights with Rough Country's 5-Inch Lift Kit!\

Top Quality Construction. With parts built specifically for your Excursion, this kit makes it easy to tackle any terrain. Our 5-Inch Lift Kit features Lifted Leaf Springs, Track and Sway-Bar Drop Brackets for the front, and Fabricated anti-wrap lift blocks for the rear, leveling the front with the rear for a more balanced look. We also include Premium N3 Series Shocks that are fine-tuned 10-stage variable high-pressure Nitrogen charged to provide an excellent balance of off-road performance and smooth highway ride.\

Installation and Warranty. Our lift kit is a simple bolt-on installation that requires 6 to 8 hours and includes all hardware needed. The easy-to-follow instructions will guide you through each step of the process so you can enjoy your Excursion's new aggressive look in no time! Rough Country's products are backed with a limited lifetime replacement warranty for manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty, give yourself peace of mind when using Rough Country's products!

  • Easy bolt-on installation
  • Increased ground clearance
  • Levels the front with the rear of the vehicle
  • Fabricated blocks are stronger and offer a longer lifespan than cast blocks
  • Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem

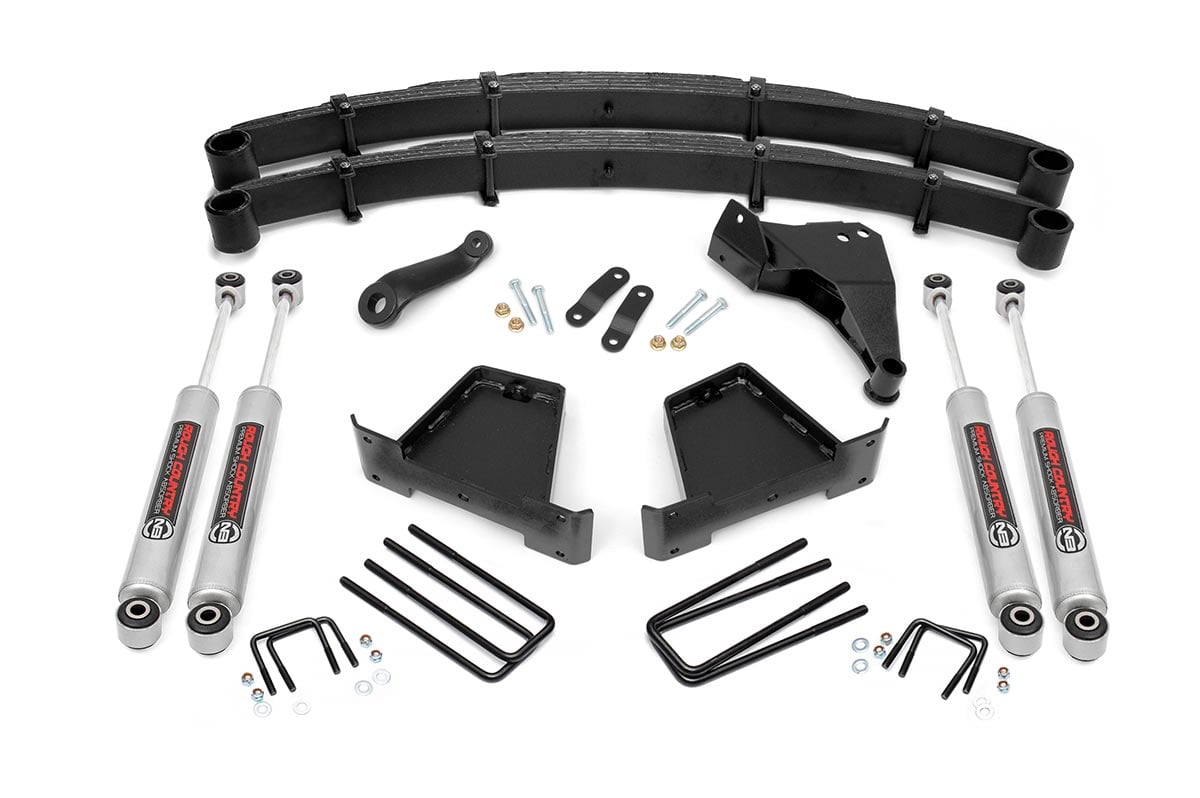

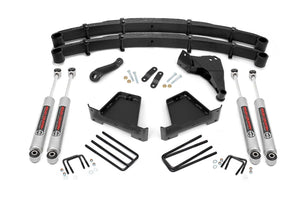

Front Components Rear Components
  • Lifted leaf springs\
  • Track bar drop bracket\
  • Sway-bar drop brackets\
  • Pitman arm\
  • U-bolts\
  • Hardware
  • Fabricated anti-wrap lift blocks\
  • U-bolts\
  • Hardware
Click Here for Instructions

Fitment:
YearMakeModelDrive
2000-2005FordExcursion4WD

Tire SizeWheel SizeBolt PatternOffsetTrimming Note
35x12.50R1717x8.58x170+0
35x12.50R1717x8.58x170+1
35x12.50R1717x98x170-12
33x12.50R1717x98x170-12
315/70R1717x98x170-12
305/70R1717x98x170-12
295/70R1717x98x170-12
285/75R1717x98x170-12
35x12.50R1717x98x170+0
35x12.50R1717x98x170+1
35x12.50R1818x8.58x170+0
295/70R1818x8.58x170+0
35x12.50R1818x8.58x170+1
295/70R1818x8.58x170+1
35x12.50R1818x98x170-12
33x12.50R1818x98x170-12
295/70R1818x98x170-12
285/75R1818x98x170-12
35x12.50R1818x98x170+0
33x12.50R1818x98x170+0
295/70R1818x98x170+0
285/75R1818x98x170+0
35x12.50R1818x98x170+1
33x12.50R1818x98x170+1
295/70R1818x98x170+1
285/75R1818x98x170+1
35x12.50R1818x108x170-25
295/70R1818x108x170-25
35x12.50R1818x108x170-19
295/70R1818x108x170-19
35x12.50R1818x108x170-18
295/70R1818x108x170-18
35x12.50R2020x98x170-12
35x11.50R2020x98x170-12
33x12.50R2020x98x170-12
305/55R2020x98x170-12
295/65R2020x98x170-12
295/60R2020x98x170-12
35x12.50R2020x98x170+0
35x12.50R2020x98x170+1
35x12.50R2020x108x170-25Minor Trimming
35x12.50R2020x108x170-19Minor Trimming
33x12.50R2020x108x170-19Minor Trimming
305/55R2020x108x170-19Minor Trimming
295/60R2020x108x170-19Minor Trimming
35x12.50R2020x108x170-18Minor Trimming
33x12.50R2020x108x170-18Minor Trimming
305/55R2020x108x170-18Minor Trimming
295/60R2020x108x170-18Minor Trimming
35x12.50R2020x128x170-44Trimming Required
33x12.50R2020x128x170-44Trimming Required
305/55R2020x128x170-44Trimming Required
35x12.50R2222x108x170-25Minor Trimming
35x12.50R2222x108x170-19Minor Trimming
33x12.50R2222x108x170-19Minor Trimming
285/55R2222x108x170-19
35x12.50R2222x108x170-18Minor Trimming
33x12.50R2222x108x170-18Minor Trimming
285/55R2222x108x170-18
35x12.50R2222x128x170-44Trimming Required
33x12.50R2222x128x170-44Trimming Required
